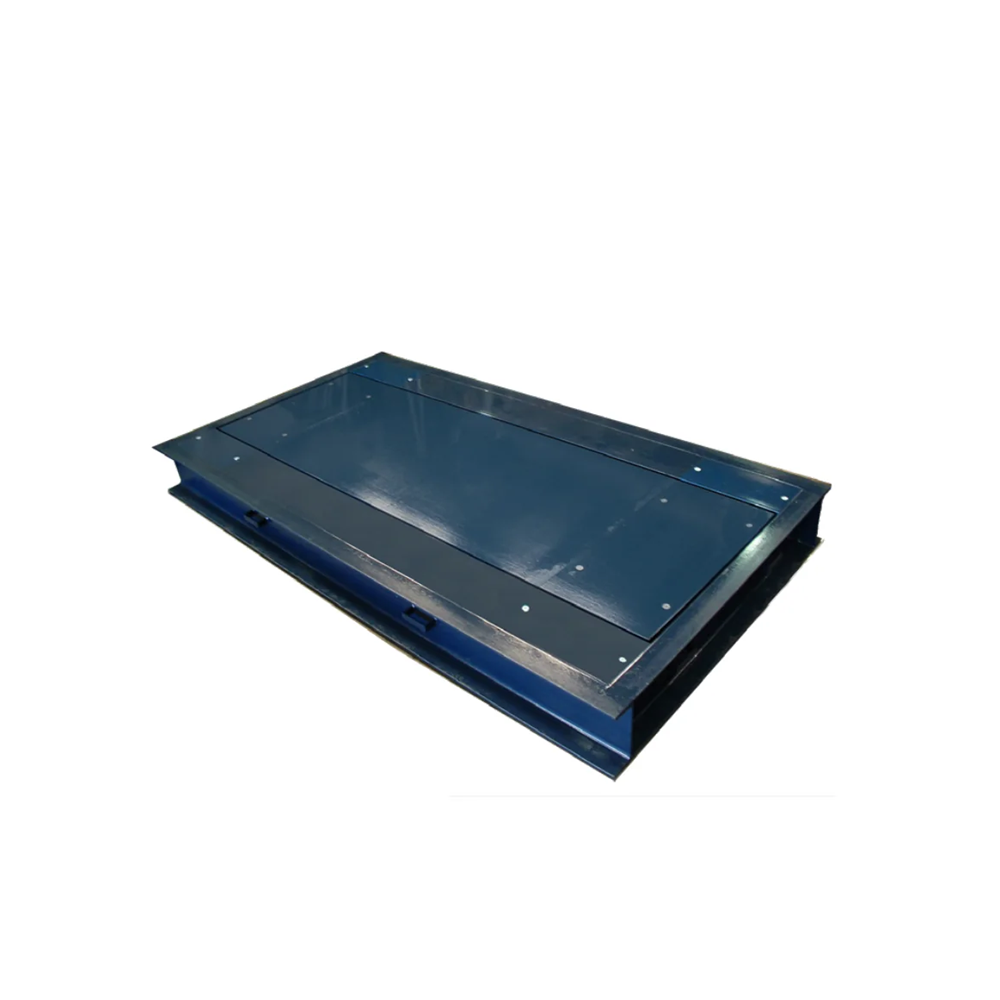

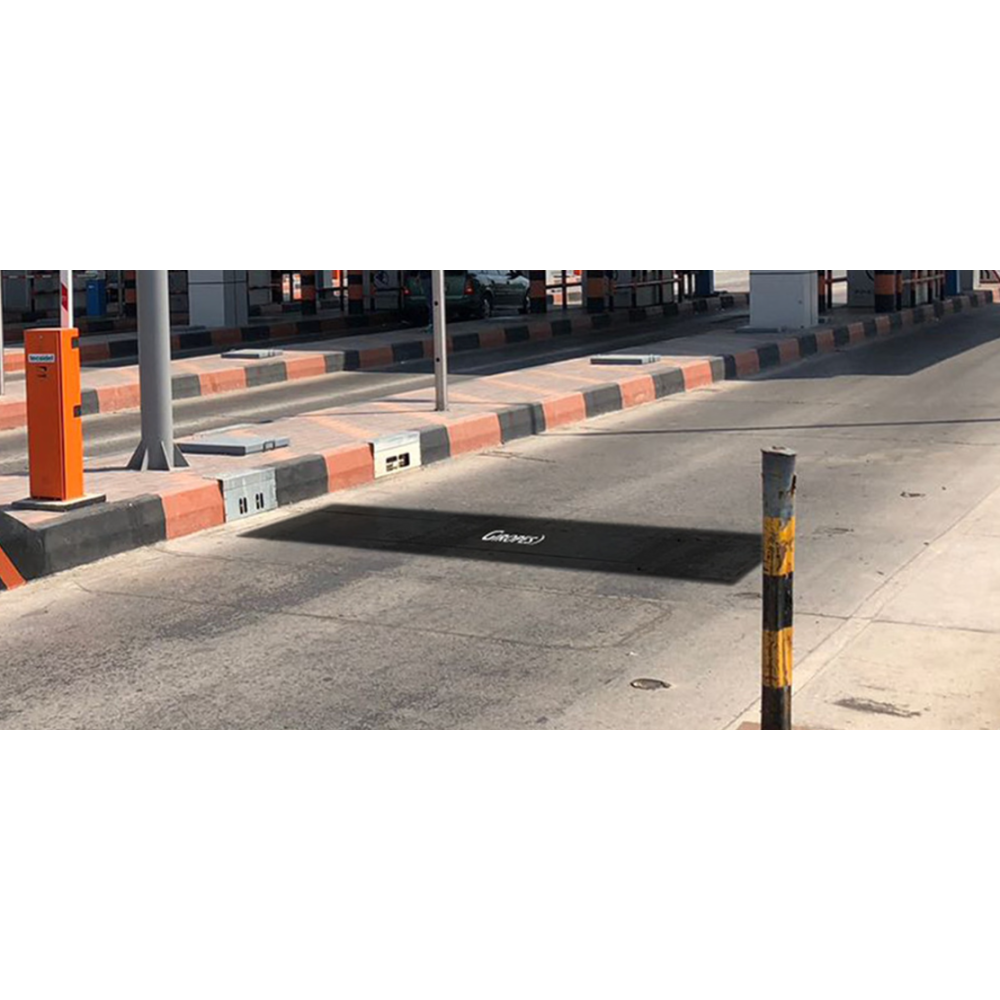

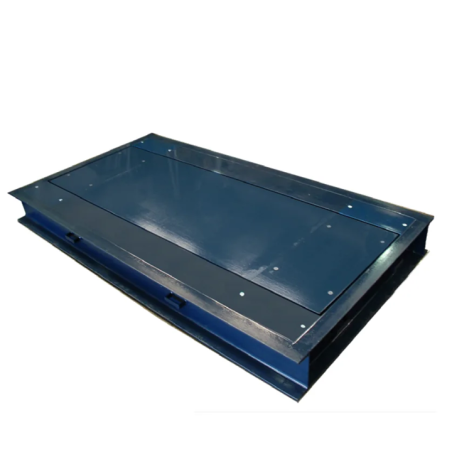

- These axle scales are made of metal, and the construction allows them to be installed flush with the road surface.
- Evenly distributes the loads, weighs the installation of new axles.
- Scales are sold with a frame.
- Installation hole depth 270-330mm (depends on scale model).
- The platform is painted with blue two-component polyurethane paint RAL 5004.
- Complete with various models of weight indicators, excellent options (static/dynamic weighing, printer, IP class, etc.).
| Capacity (t) | Dimensions (m) | N. Cells | Height (mm) |
| 15 | 3x0,75 | 4 | 270 |
| 30 | 3x0,75 | 4 | 310 |
| 40 | 3x0,75 | 4 | 330 |
| 15 | 3x1 | 4 | 270 |
| 30 | 3x1 | 4 | 310 |
| 40 | 3x1 | 4 | 330 |
| 15 | 3x1,5 | 4 | 270 |
| 30 | 3x1,5 | 4 | 310 |
| 40 | 3x1,5 | 4 | 330 |
