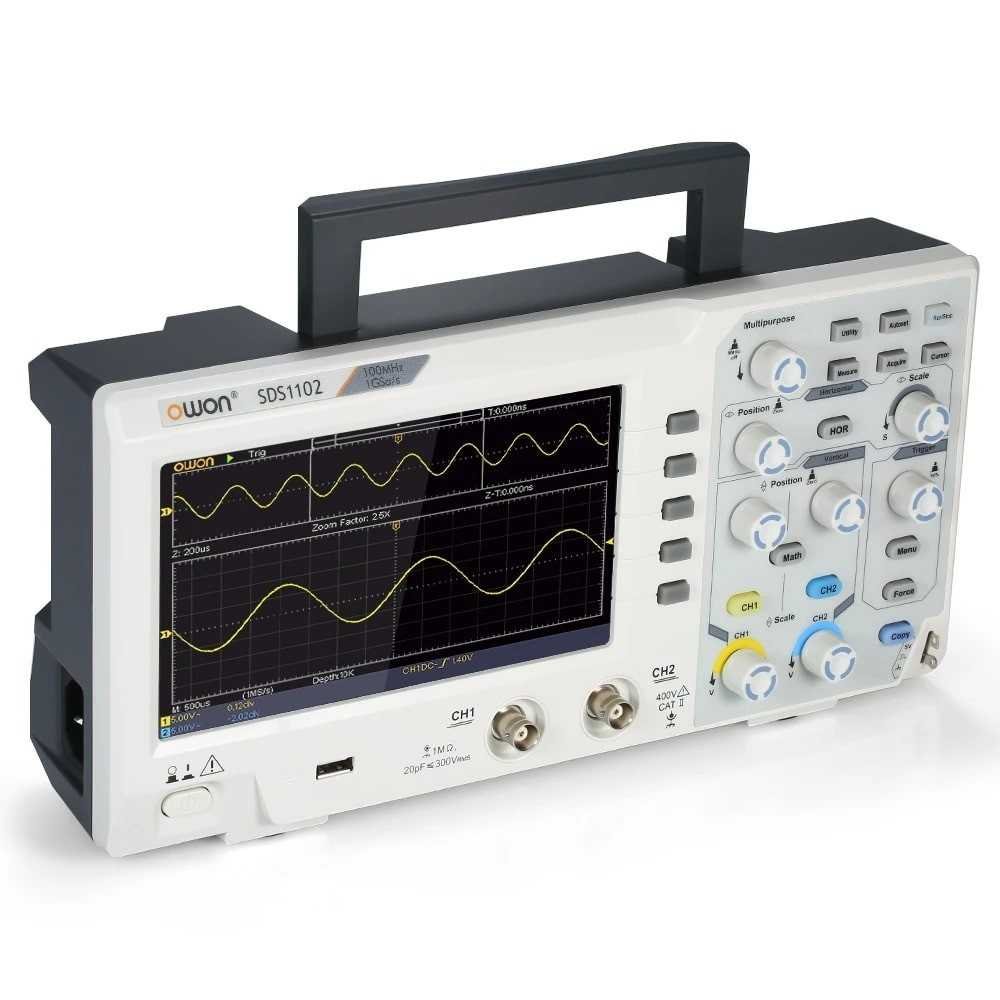

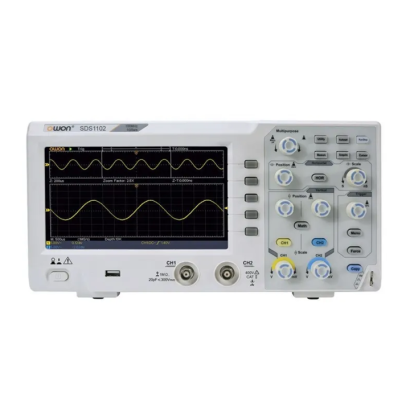

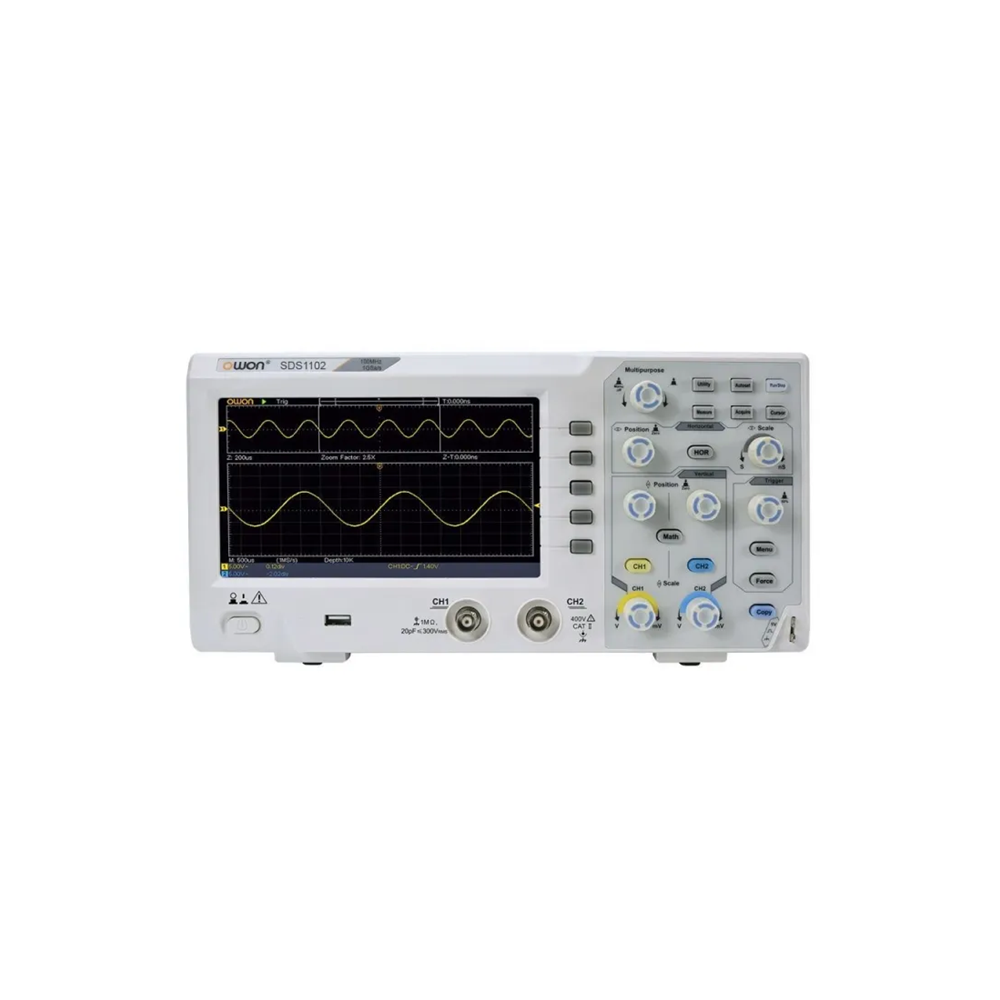

Owon SDS1102 oscilloscope

Owon SDS1102 oscilloscope
Short description

Delivery 5-15 working days

€249.00
Tax included
Quantity
Ordered item

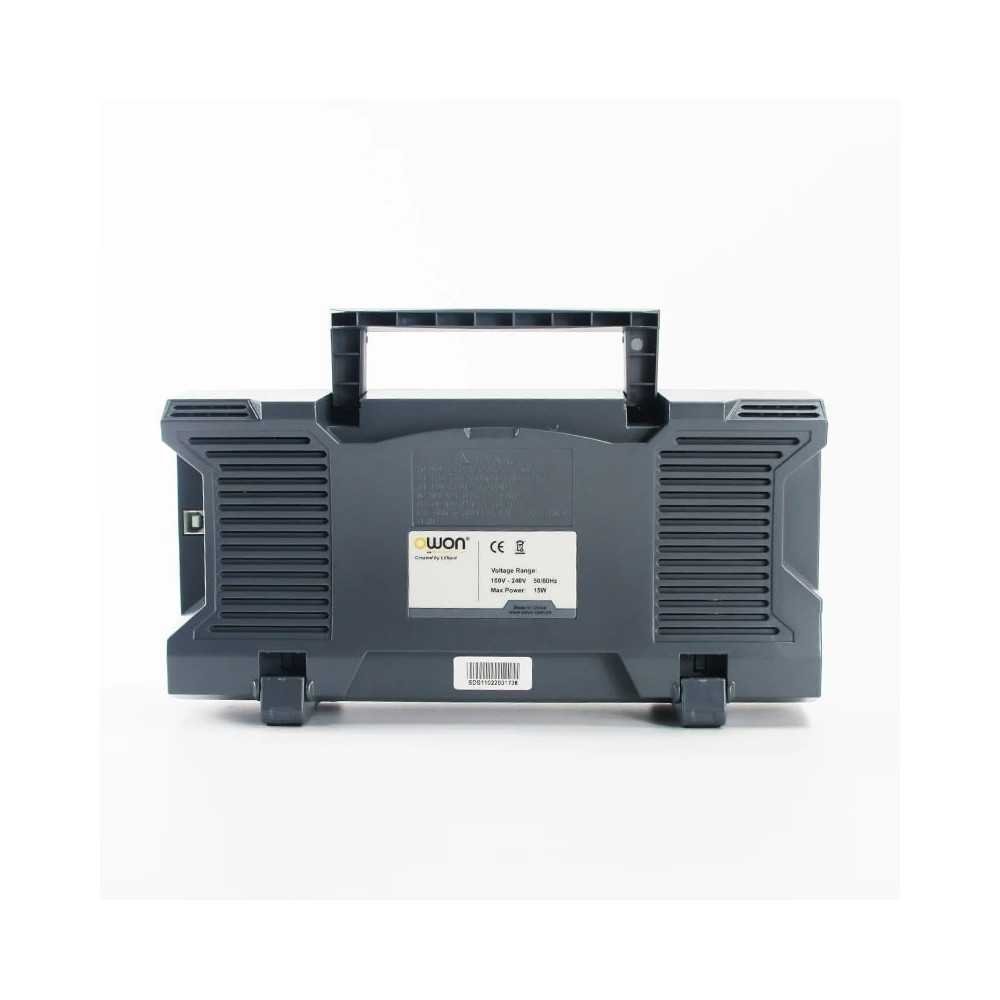

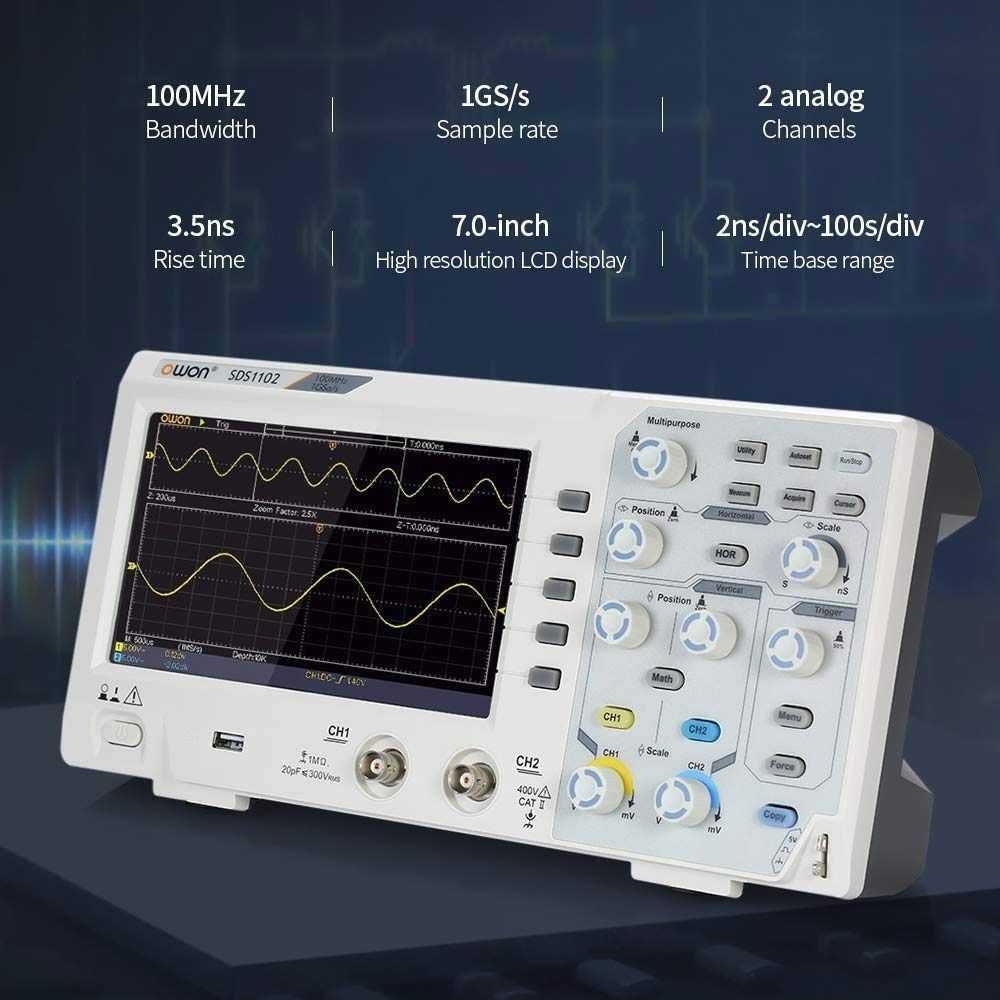

The Owon SDS1102 is a competitively priced oscilloscope with a sample rate of 1 GSa/s and a bandwidth of 100 MHz. With this oscilloscope, you have 2 channels at your disposal and it is possible to store 10 K points per measurement. There is a USB connection on the back for exporting measurement results to the PC, and a USB connection on the front for exporting to a USB memory stick. This model has passive cooling: there is no fan, so it is silent!

Bandwidth100 MHzChannels2
Memory depth10 kptsSample rate1 GSa/s
Rise time≤3.5 ns Trigger typesEdge, Video
Vertical resolution8 bitVertical scale5 mV/div - 5 V/div
Horizontal scale2.0 ns/div - 100 s/divMeasuring parameters (vertical)Vmax, Vmin, Vpp, Vtop, Vbase, Mean, Vmean, Vrms
Measuring parameters (horizontal)Period, Freq, +Wid, -Wid, Rise time, Fall time, +Dut, -Dut, DelayDisplay7" TFT LCD (800x480)
ConnectivityUSB (Host/Device)
Dimensions301 x 152 x 70 mmWeight1,1 kg

Accessories:
The Owon SDS1102 oscilloscope comes with:
USB cable
Power cord
2 passive probes 100MHz
Probe setting tool
