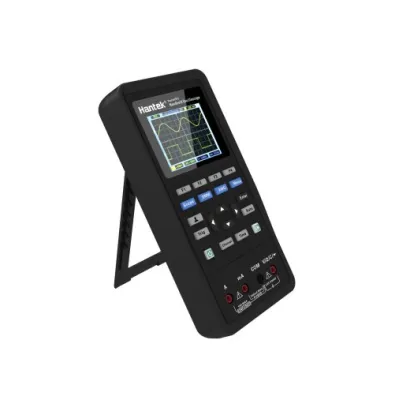

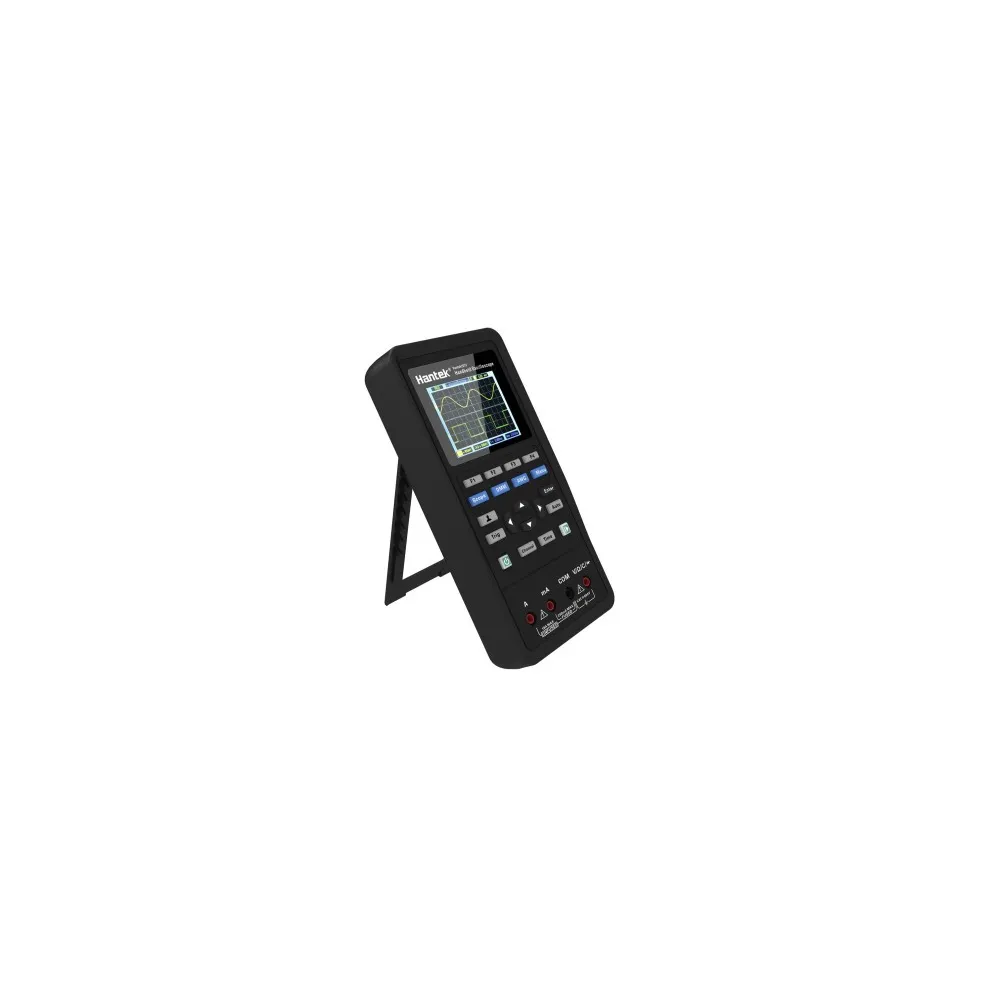

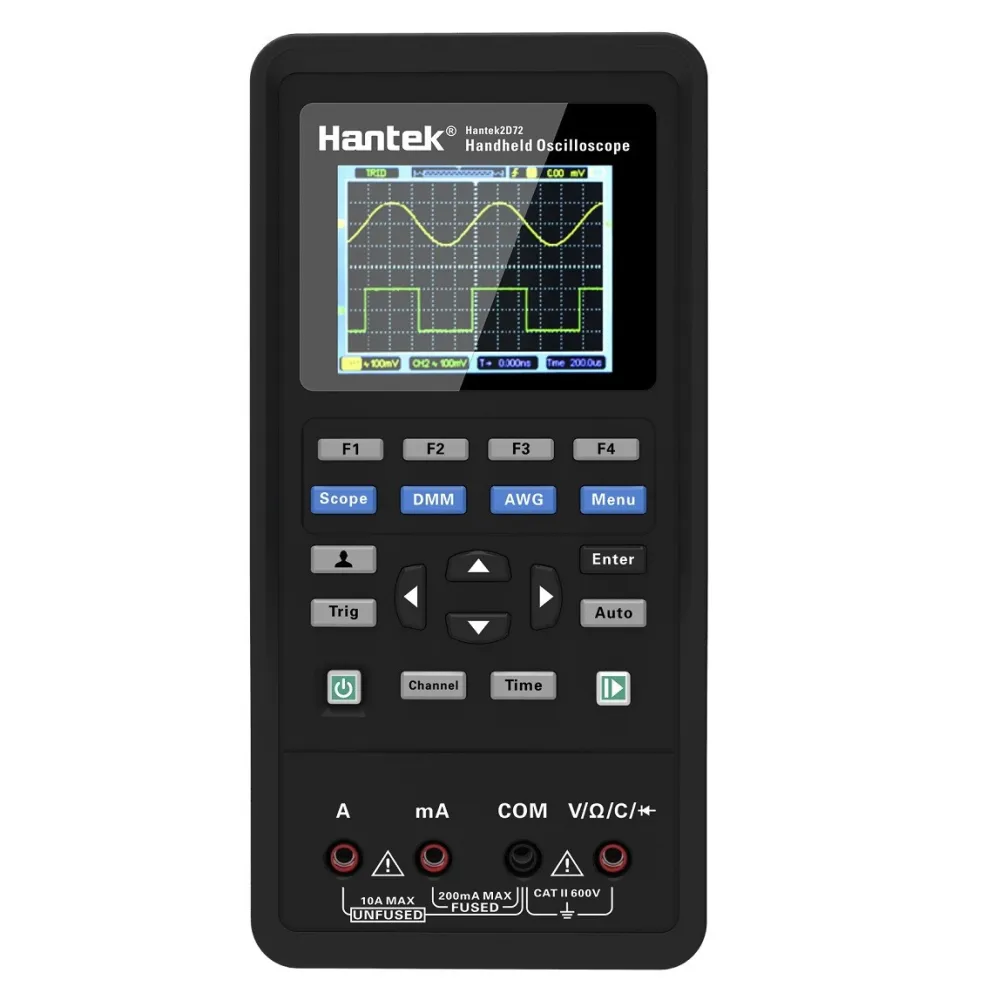

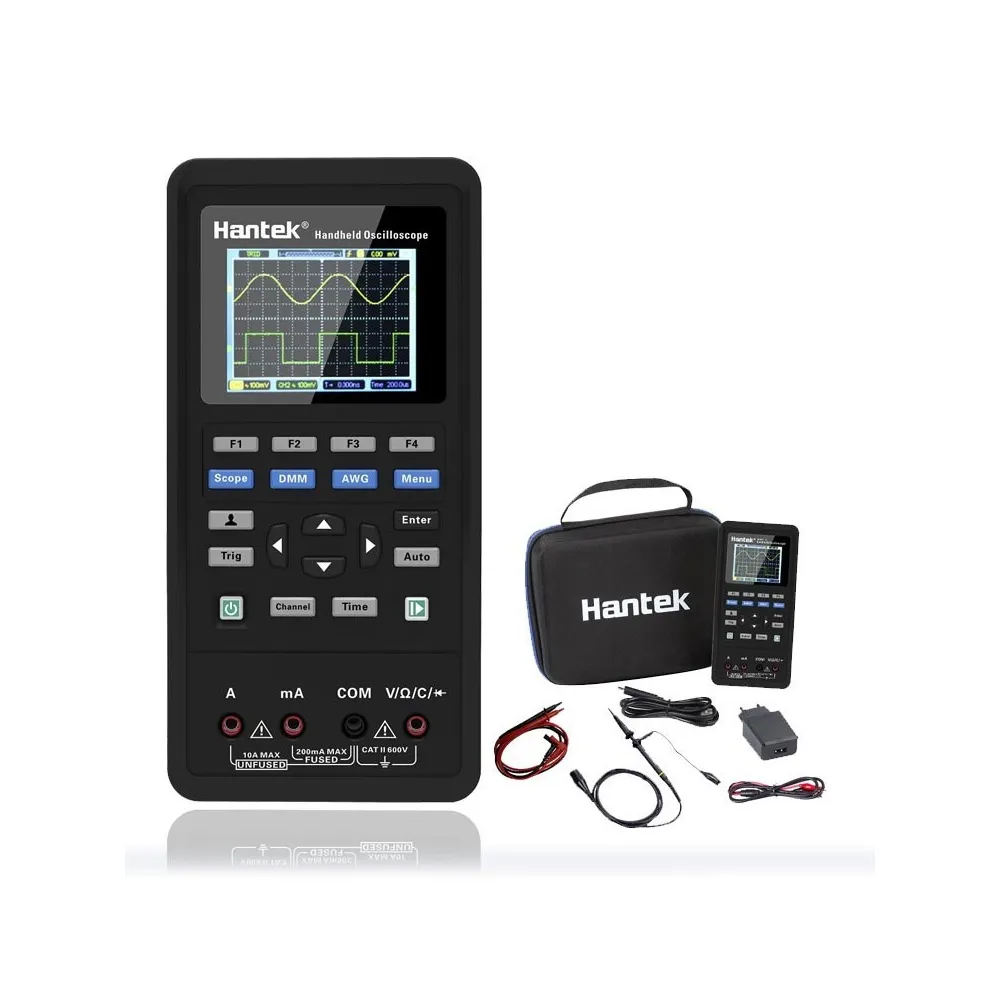

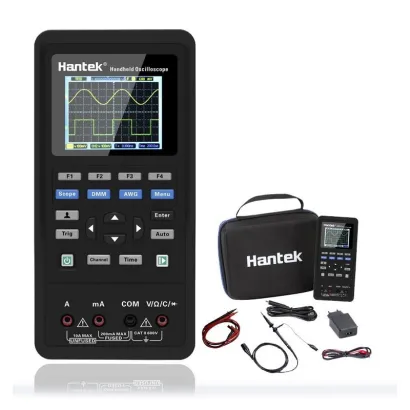

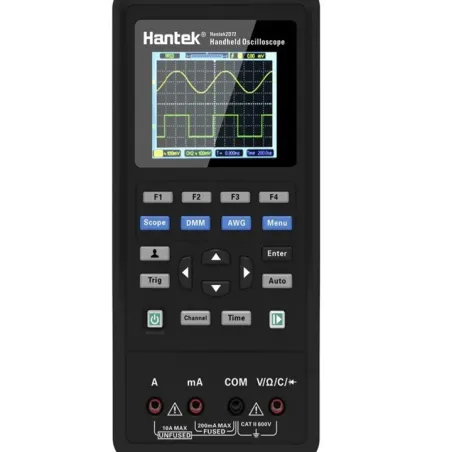

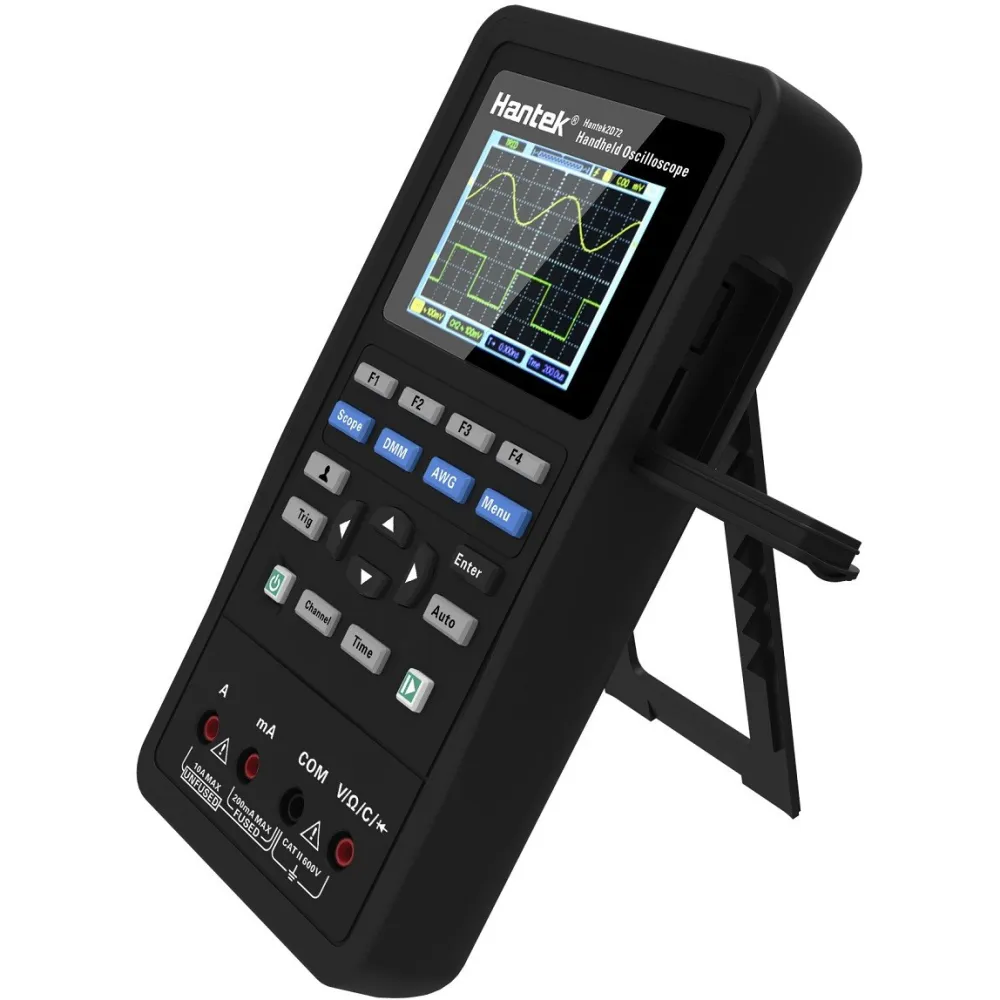

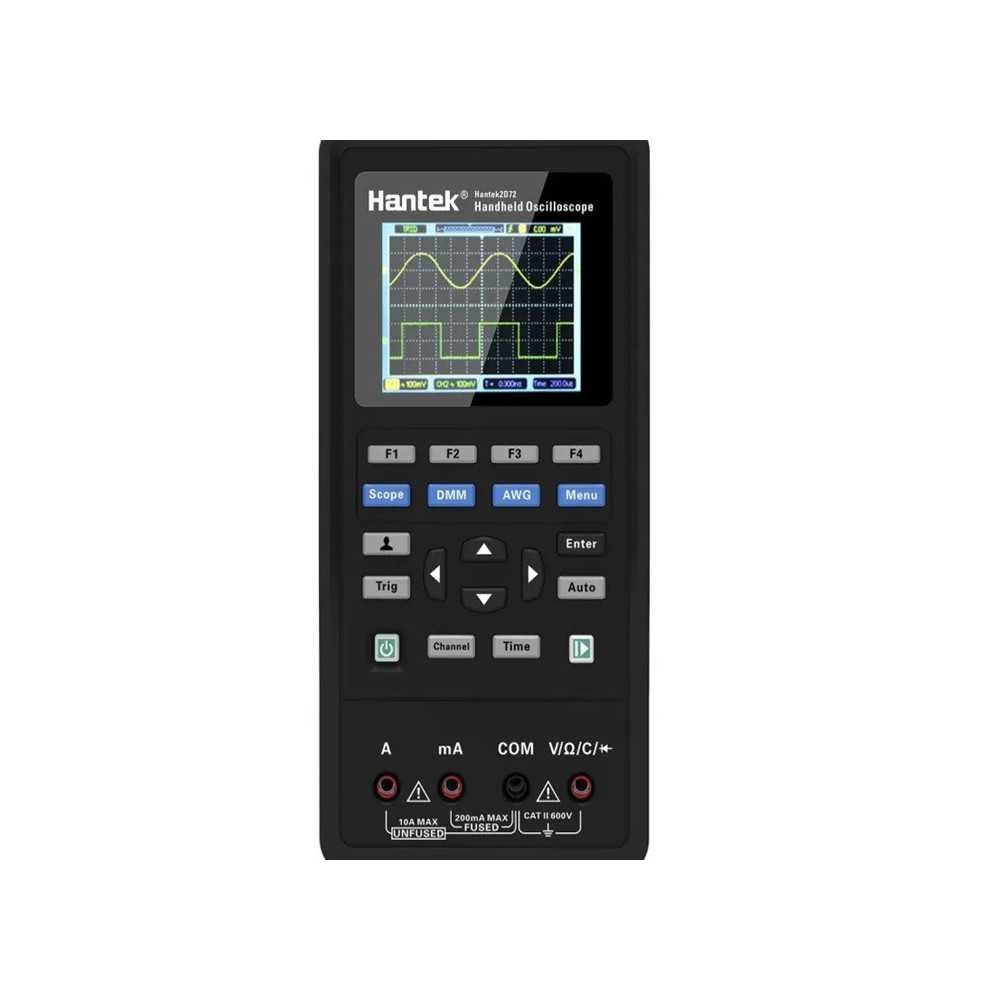

Hantek 2D72 handheld oscilloscope

Short description

Delivery 5-15 working days

€249.00

Tax included

Description
Product Details

Hantek 2000 series handheld oscilloscopes are inexpensive and at the same time versatile. The 2D72 operates in a frequency range of up to 70 MHz, has a multimeter and a function generator. Therefore, it is a very functional device.

The oscilloscope operates with a built-in lithium-ion battery. This battery can be charged via the included adapter with a USB-C connector. This USB-C connector is also suitable for data transfer to a computer or smartphone.

Specifications

Oscilloscope

Bandwidth	70 MHz	Channels	2
Sample rate	250 MSa/s (single channel), 125 MSa/s (double channel)	A/D converter	8 bit
Memory depth	6k (1-channel), 3k per channel (2-channels)	Vertical scale	10 mV/div - 10V/div

Function generator

Frequency	Sinus(1Hz - 25MHz), Block(1Hz - 10 MHz), Ramp(1Hz - 1 MHz), EXP(1Hz - 5 MHz)	Sampling	250 MSa/s
Amplitude	2.5 Vpp (50Ω), 5 Vpp (high-impedance)	Resolution	0.10 %
Output impedance	50 Ω

Multimeter

Resolution	4000 counts	Resistance	0.1 Ω - 40 MΩ
AC voltage	1 mV - 600 V	DC voltage	100 µV - 600 V
AC current	10 µA - 10 A	DC current	10 µA - 10 A
Capacity	10 pF - 100 µF	Diode	0 V - 2 V
Input impedance	10 MΩ
