Short description

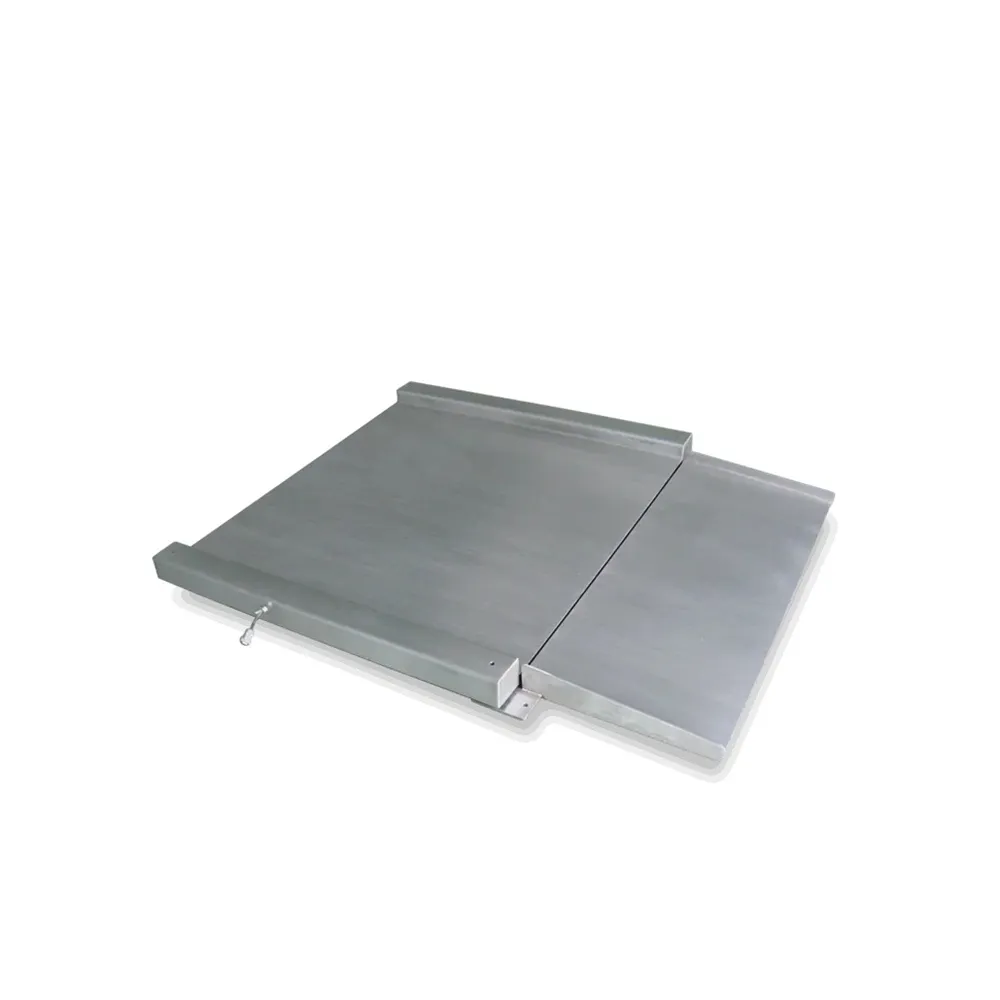

Low profile stainless steel platform scale

Low profile stainless steel platform scale
Short description
Quantity

  • Platform with 4 load cells, with low profile in stainless steel.
  • It can be used in legal metrology.
  • Installation on ground with an access ramp.
  • Structure in steel sheet of 5 mm thick.
  • With anchor plates for on-ground fixation.
  • Load cells OIML R-60 C3, in stainless steel, IP67 protection.
  • Junction box in ABS, IP66 protection.
  • Adjustable feet in height.
Capacity (kg) Dimensions (m) Readout (g) Readout (g)
600 800x800 200 100
600 1000x1000 200 100
1500 1000x1000 500 200
1500 1200x1200 500 200
3000 1200x1200 1000 500
1500 1500x1200 500 200
3000 1500x1200 1000 500
1500 1500x1500 500 200
3000 1500x1500 1000 500
4091402
