Short description

It can be ised in legal metrology

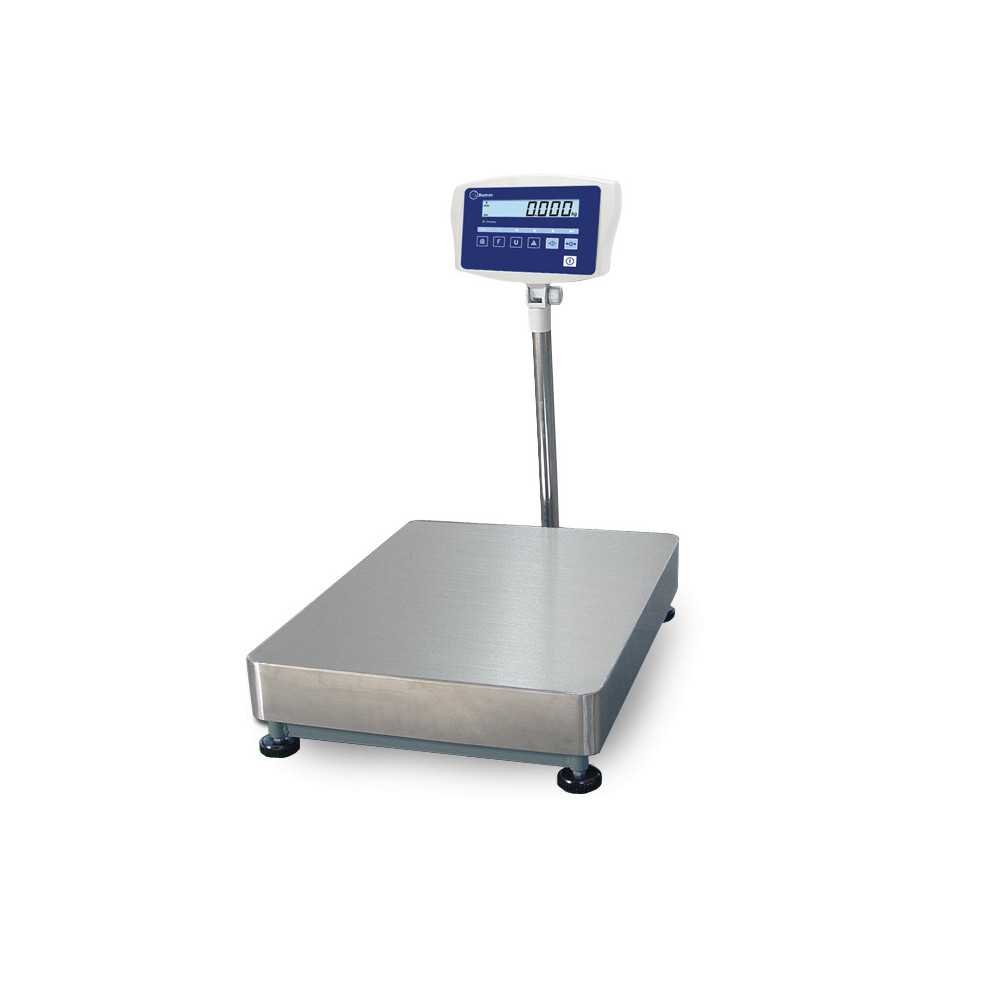

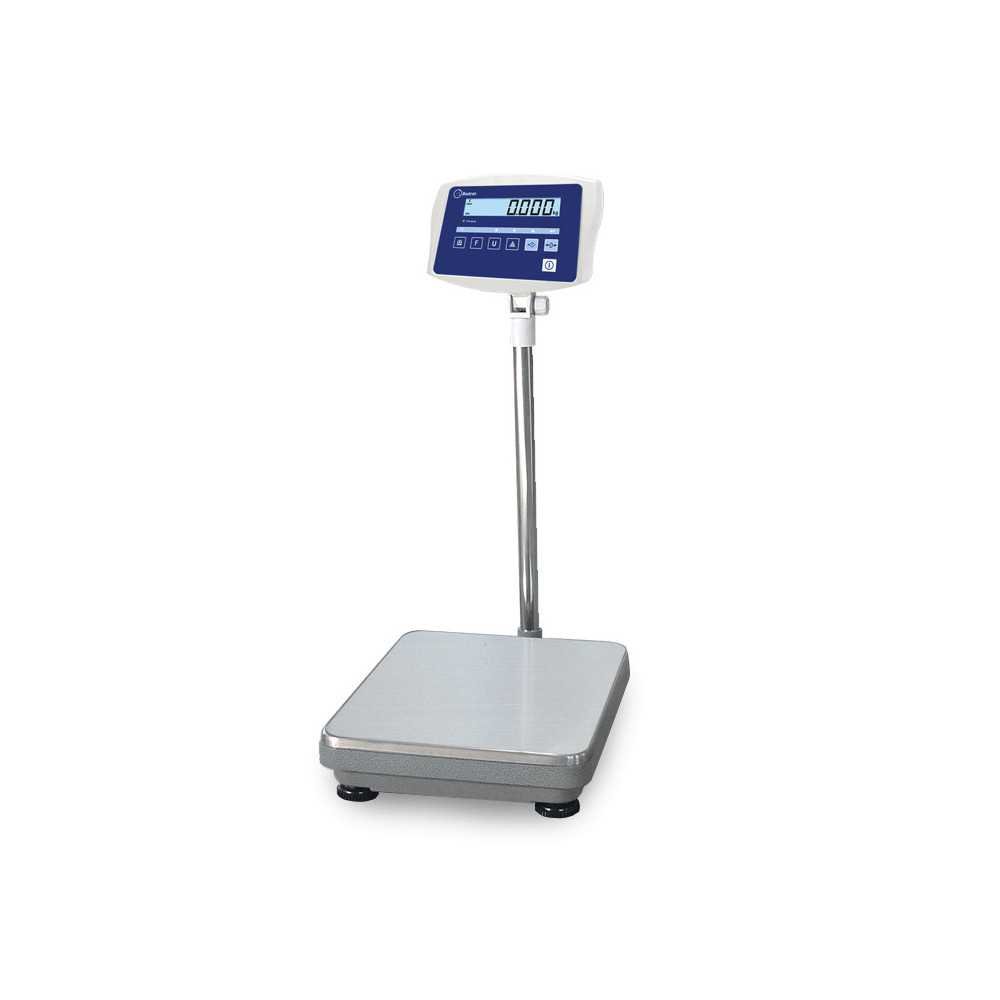

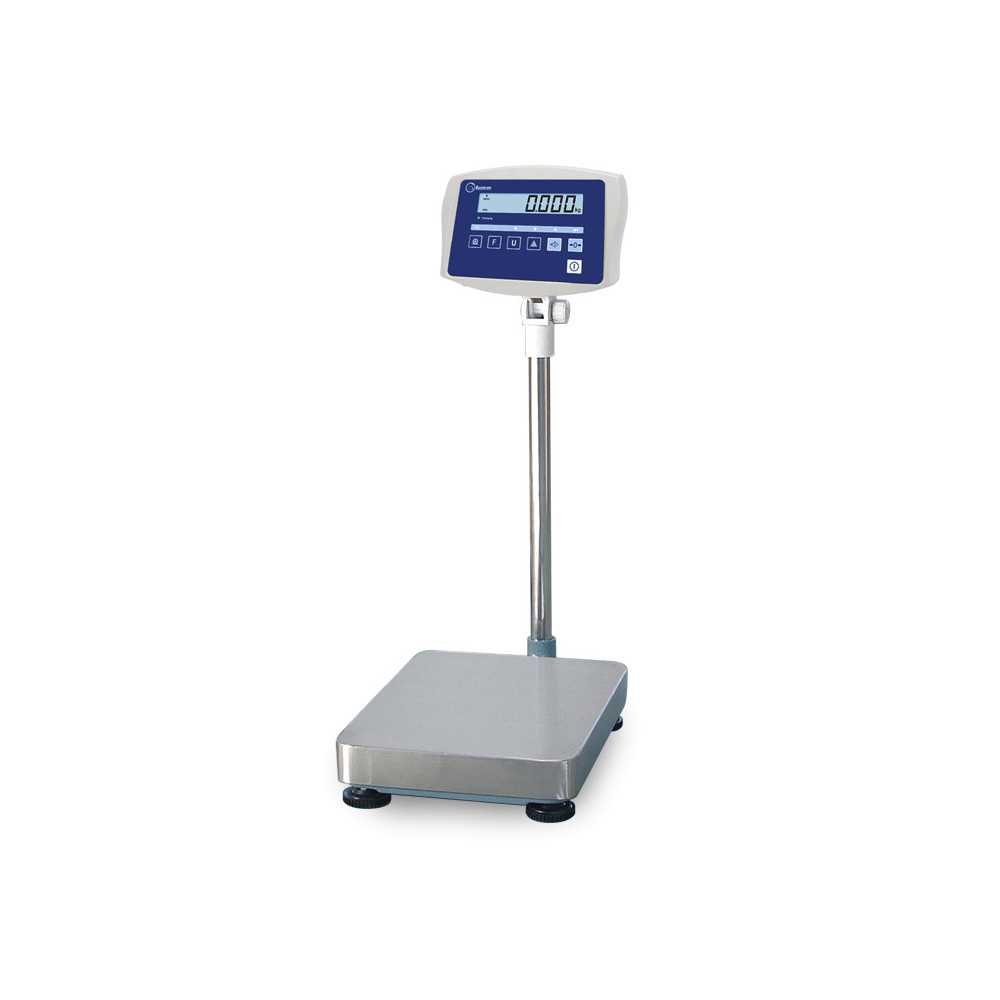

Platform scale

Platform scale
Short description

It can be ised in legal metrology

Quantity

  • EC approval.
  • OIML class III.
  • Load cell with proof. certify R-60 C3.
  • Column for the indicator.

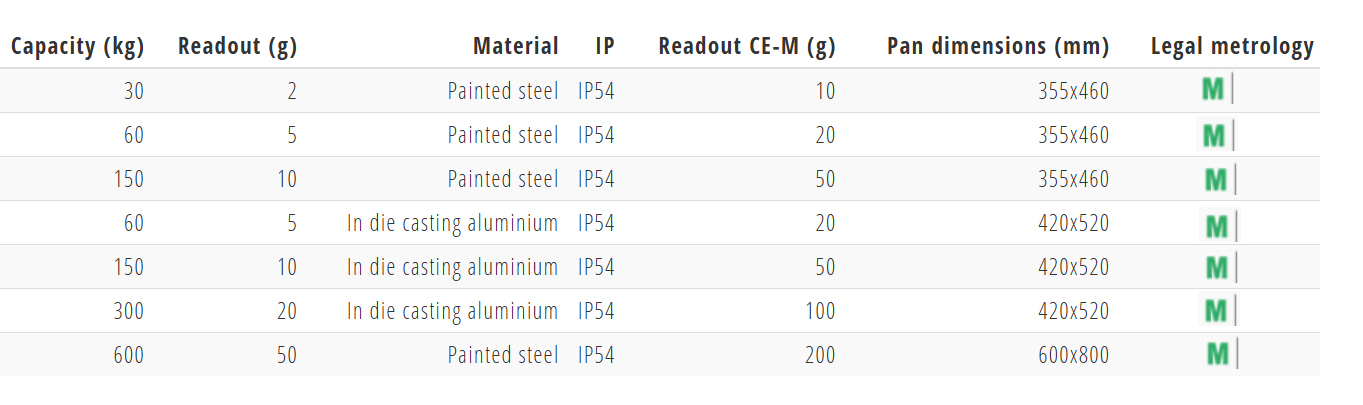

  • Three different versions:

- Version (P): 355x460 mm. Tubular framework in steel, sheet in stainless steel and aluminium load cell IP65.

- Version (M): 420x520 mm. Structure in die casting aluminium, sheet in stainless steel and aluminium load cell IP65.

- Versions (G): 600x800 mm. Tubular framework in steel, sheet in stainless steel and aluminium load cell IP65.

  • ABS indicator, model BR40.
  • Weight tare indicator which can be used in legal metrology.
  • IP54 protection.
  • Waterproof keyboard with 7 function keys.
  • Backlight LCD display with 6 digits of 24 mm.
  • Functions indication on the display.
  • ABS support column.
  • Operating temperature range: 0ºC +40ºC.
  • Power supply with adaptor AC/DC 230VAc 50Hz.
  • Internal rechargeable battery, at last 90 hours.
  • Optional RS232 output (PC and print format).
  • Units: kg.
  • Units: without legal metrology: kg, lb and t.
  • Auto switch off.

Functions:

  • Accumulation
  • Gross/Net
  • Automatic tare
  • Zero
  • Piece counting function
  • Limit function
  • Weight filter for animals
  • High resolution x10
  • Hold/peak function
