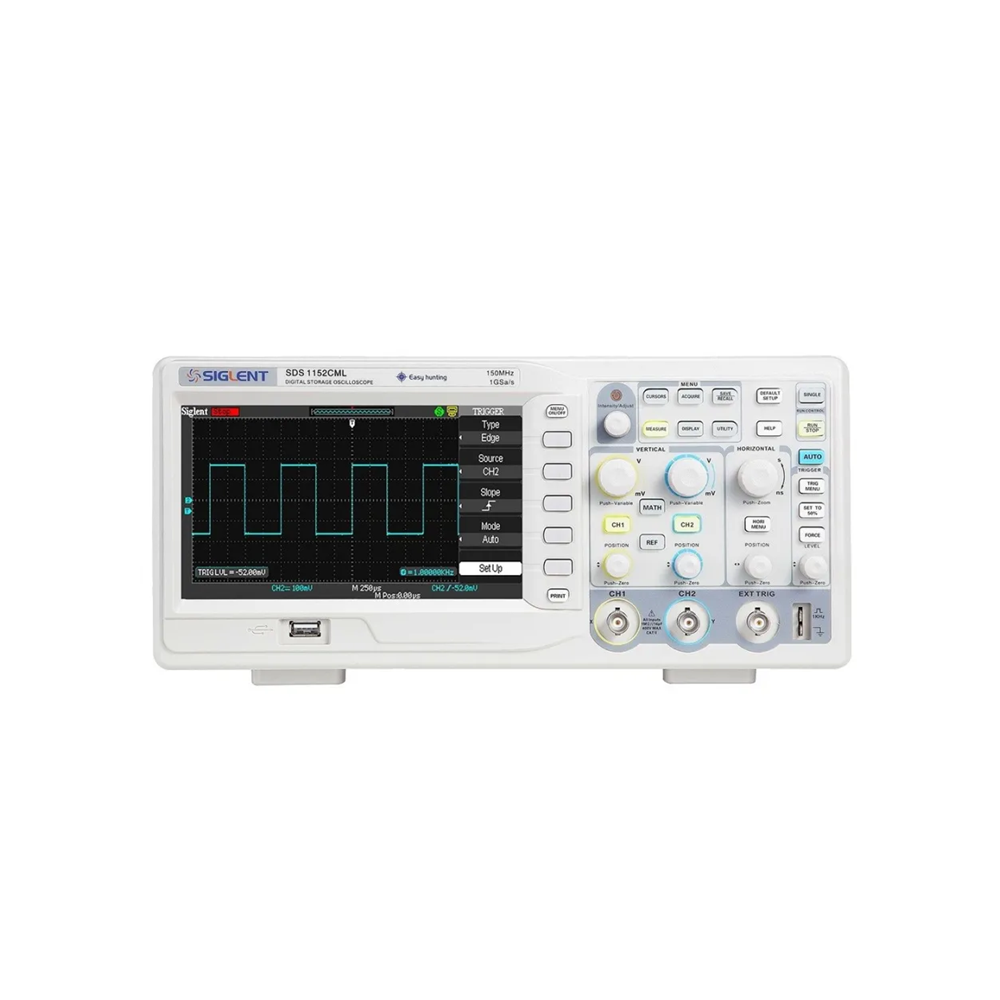

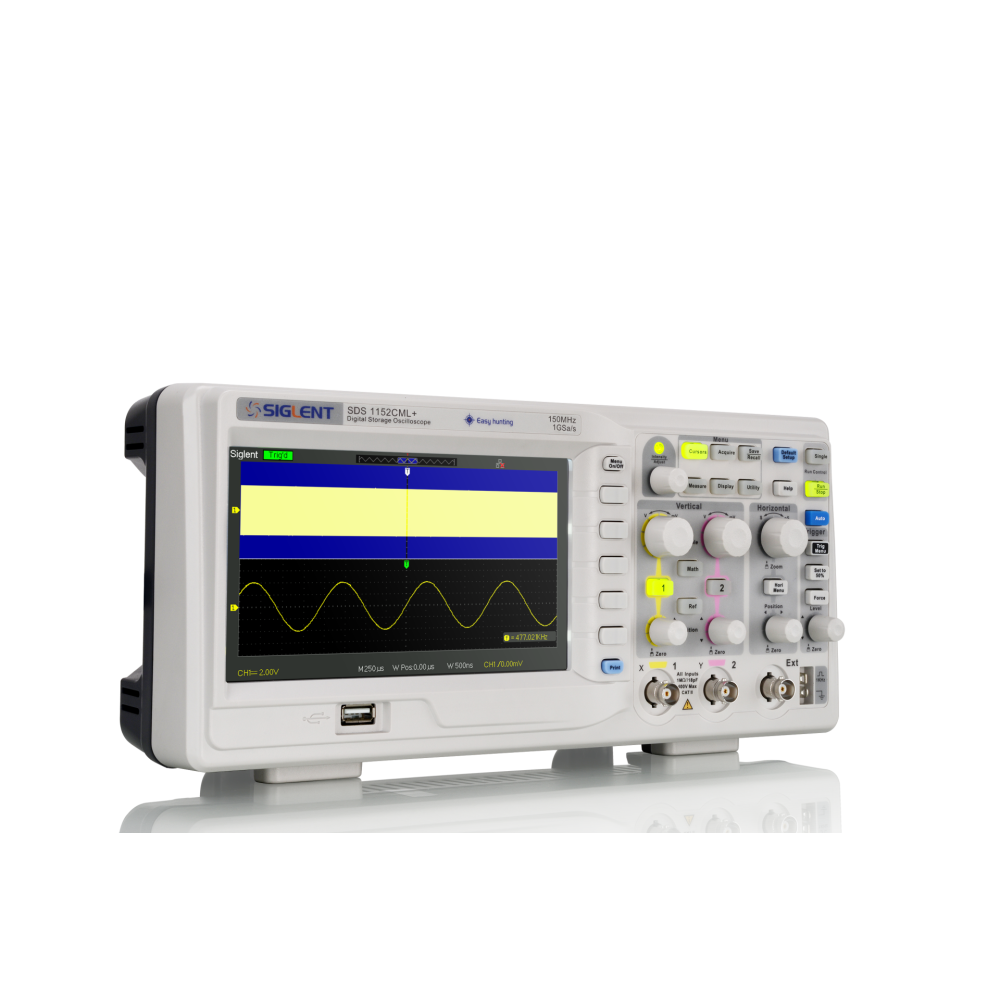

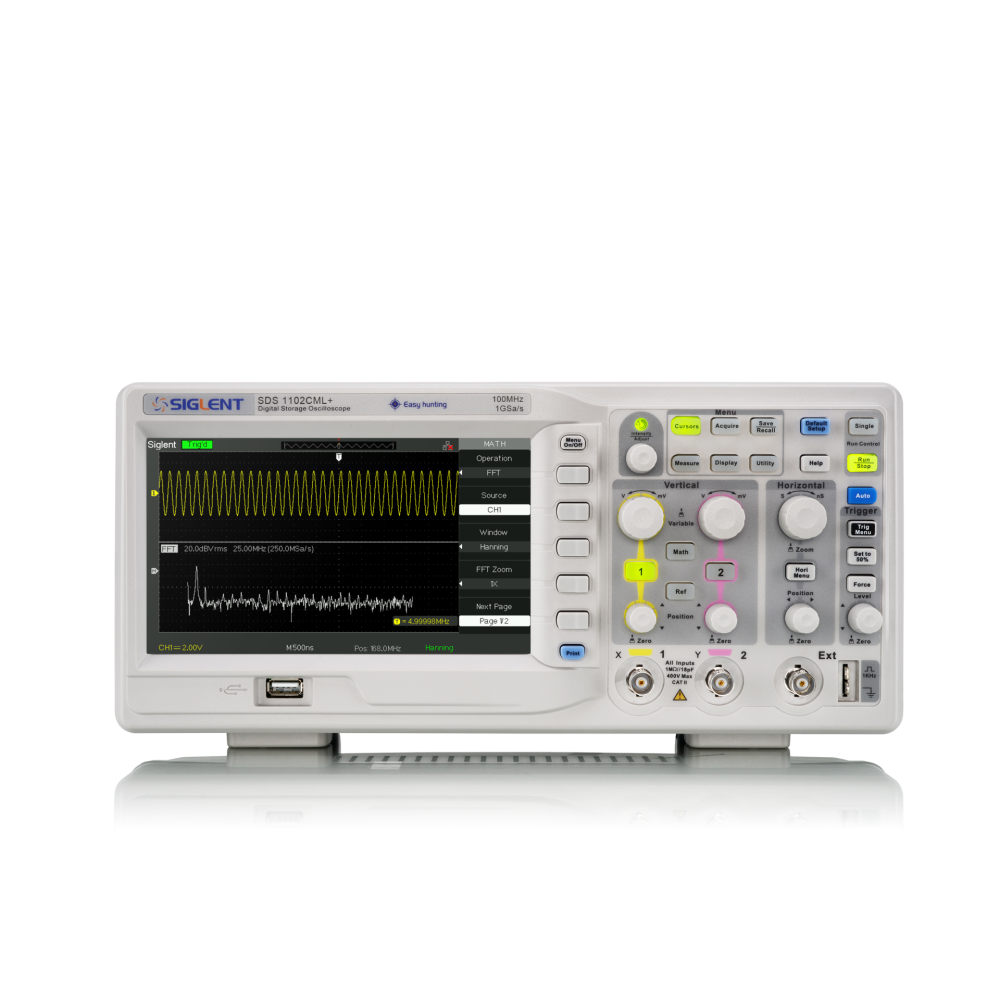

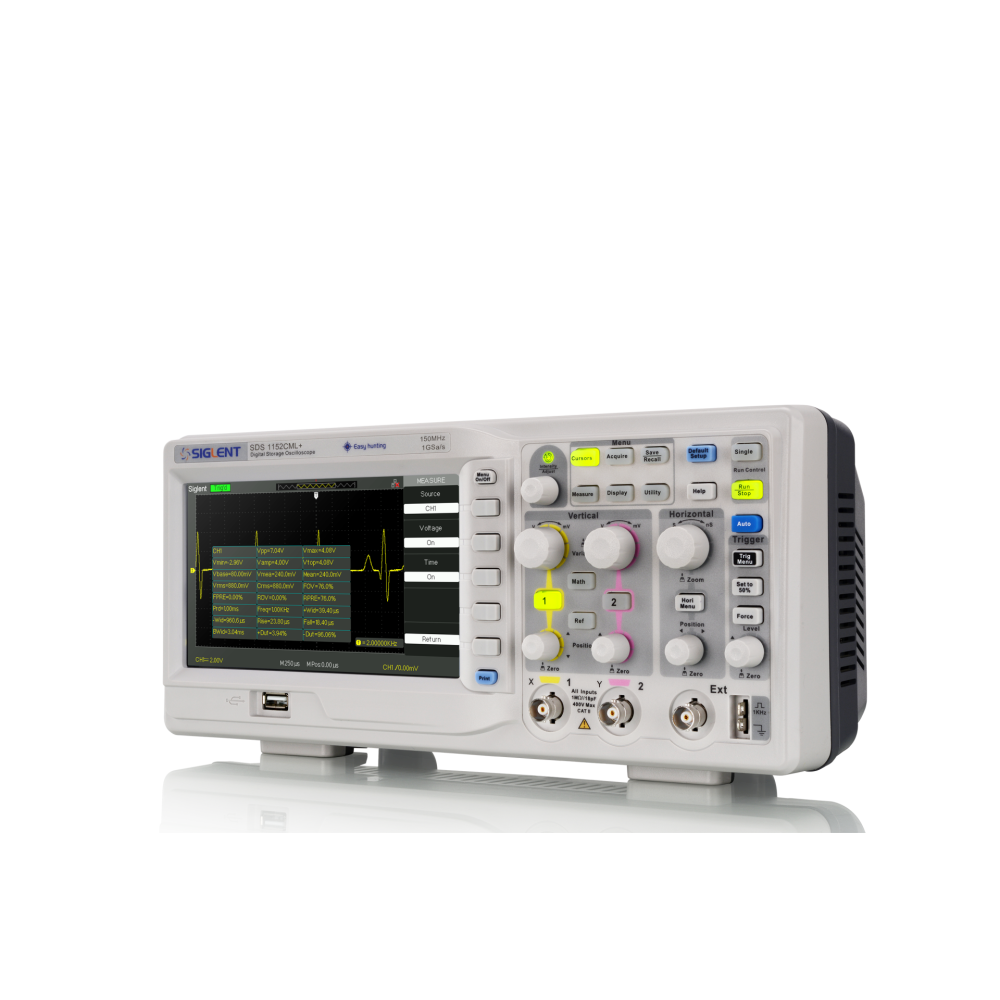

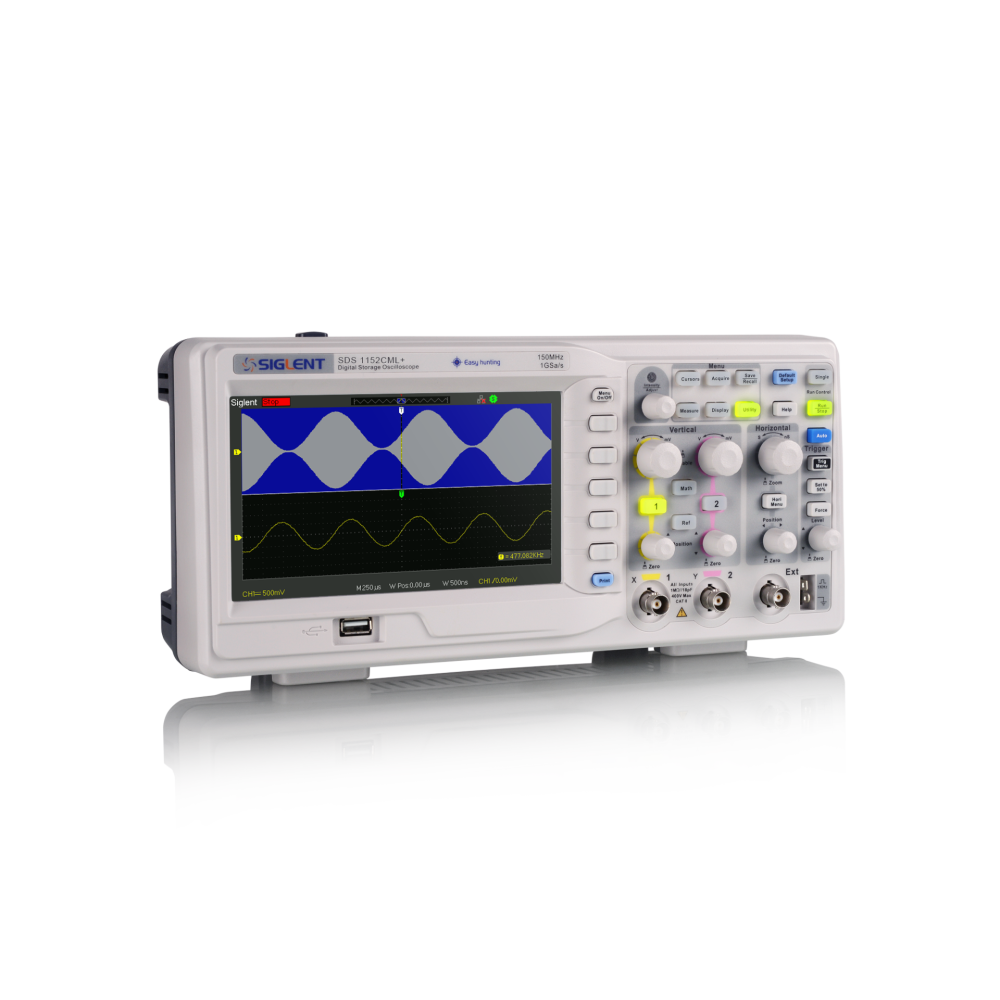

Siglent SDS1102CML+ oscilloscope

Short description

Delivery 5-15 working days

€379.00

Tax included

The Siglent SDS1102CML+ is a dual-channel universal digital oscilloscope with a 100 MHz bandwidth. It includes a 2 Mpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths.
With its 7-inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, the SDS1102CML+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.

Memory size	2 MB/ 2 Mpts	Display	7" TFT, 800 x 480 pixels
Input impedance	1 MΩ	Rise Time	≤3.5 ns
Horizontal scale	2.5 ns/div - 50 s/div	Vertical sensitivity	2 mV/div - 10 V/div
A/D convertor	8 bit resolution	Maximal voltage	400V (peak to peak)
Probe support	1x, 10x, 50x, 100x, 500x, 1000x	Number of channels	2

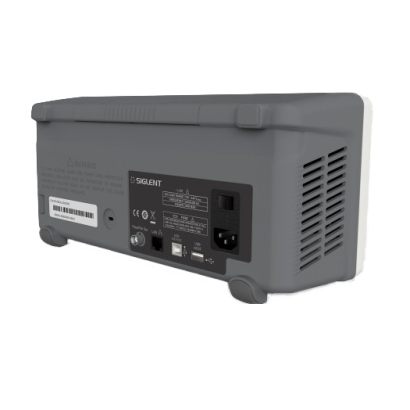

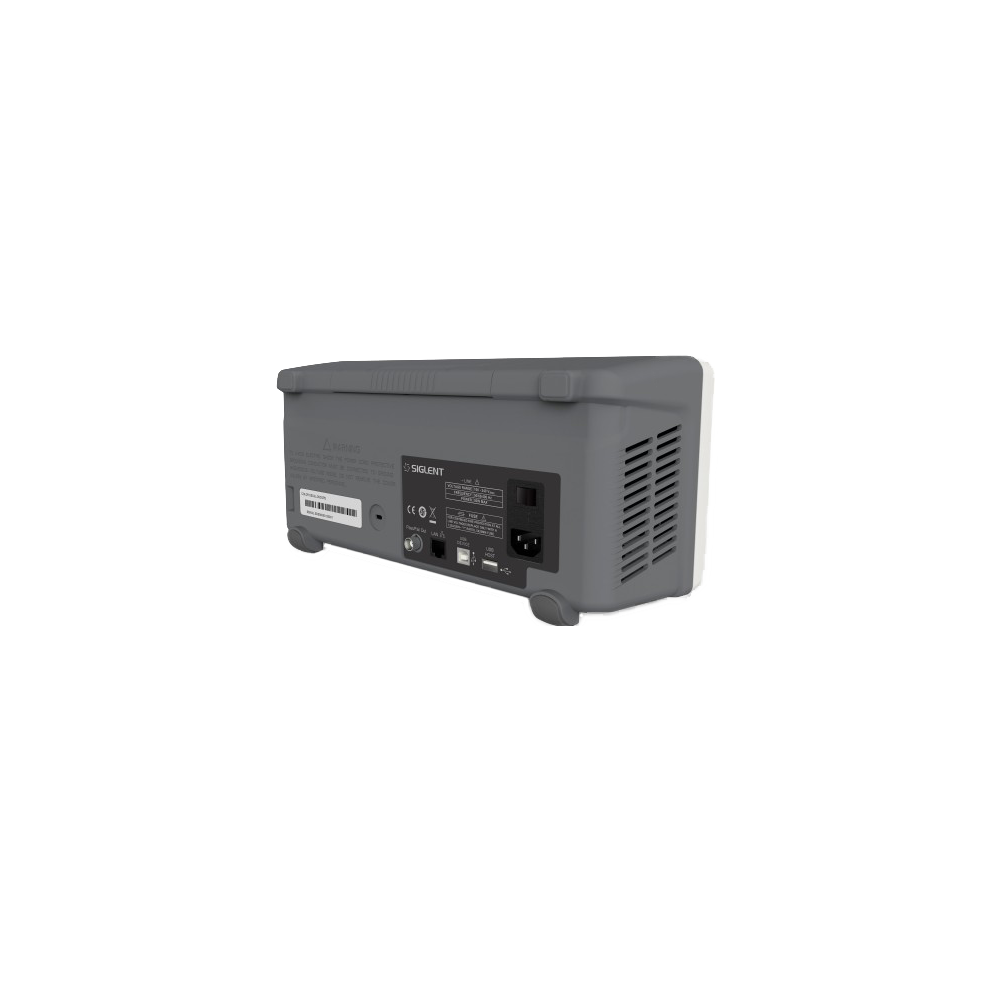

Connections	USB 2.0 type A, USB 2.0 type B, RS232, Pass/Fail trigger, RJ45 Ethernet
Dimensions	323 x 136 x 157 mm (LxWxH)	Weight	2.5 kg
