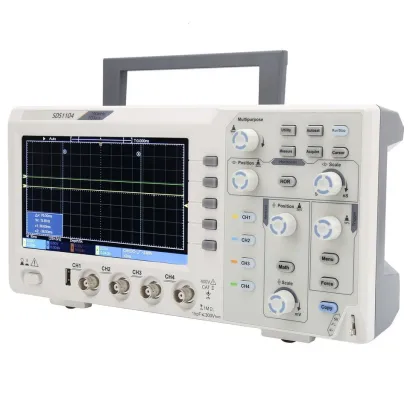

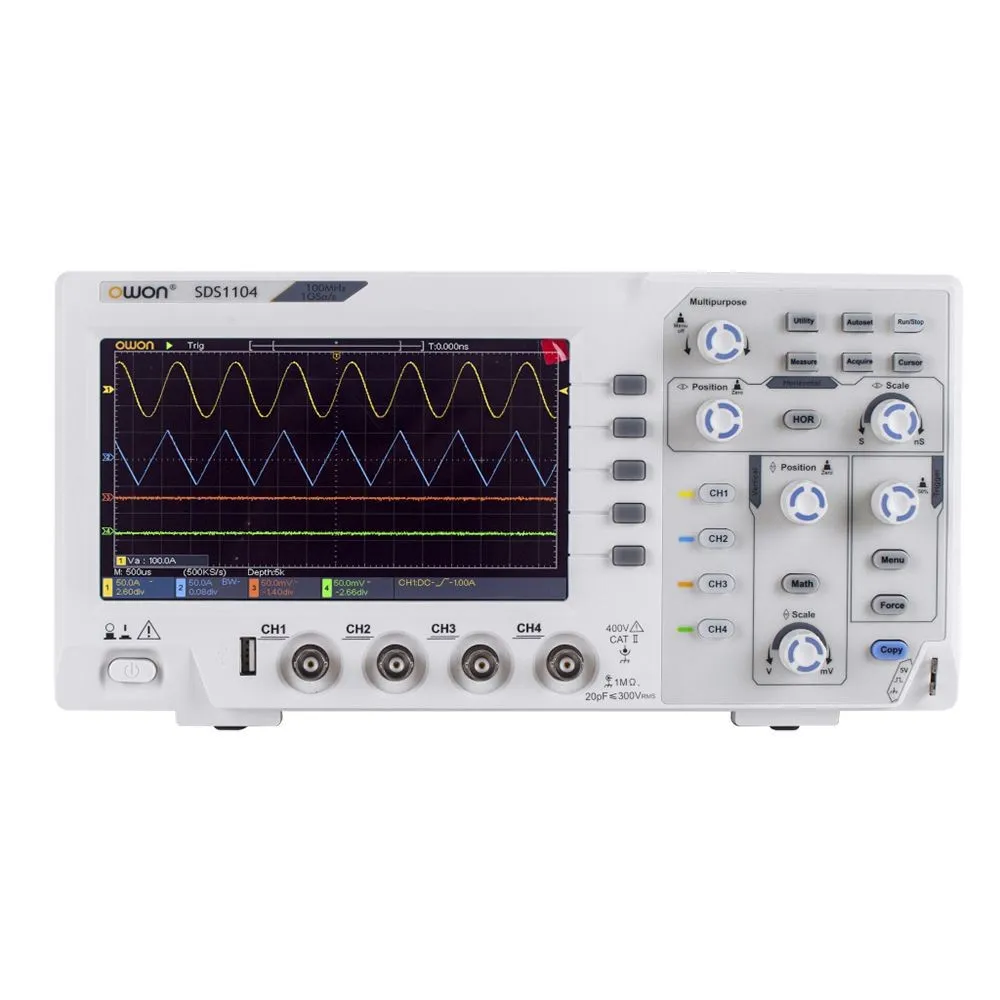

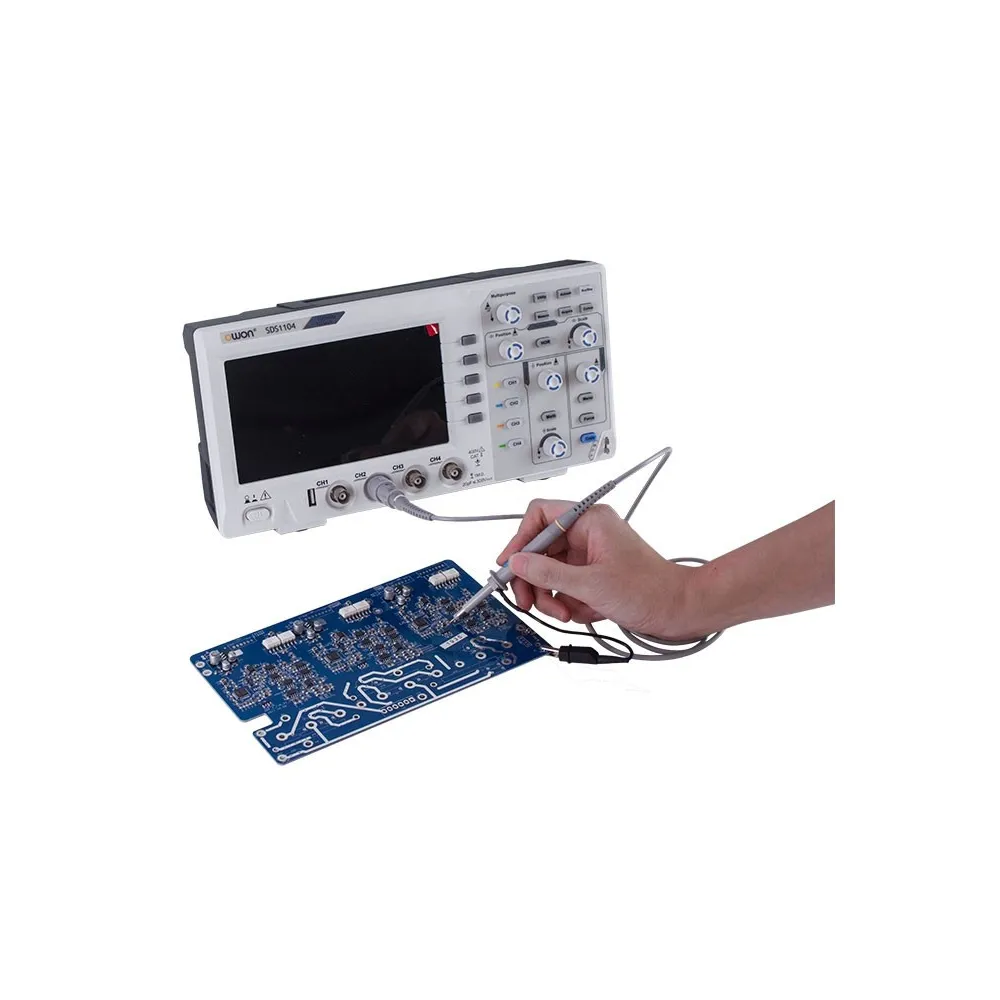

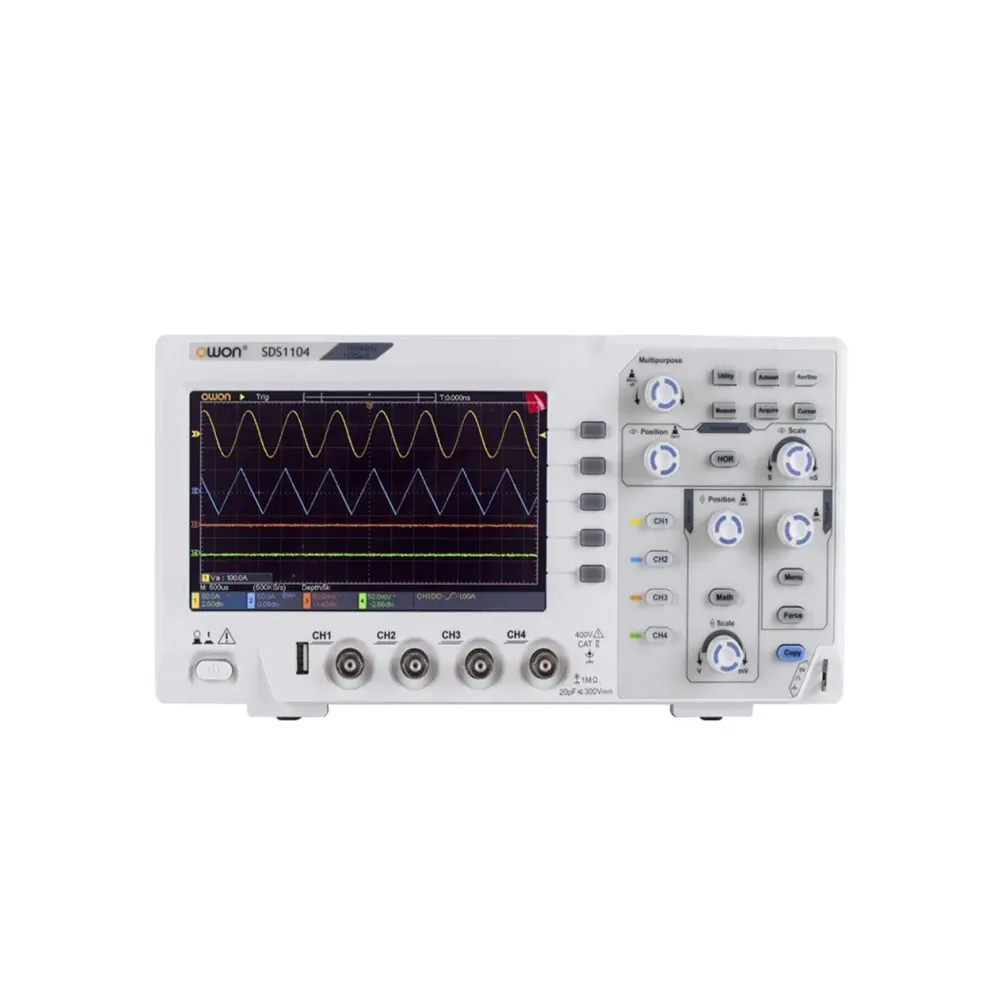

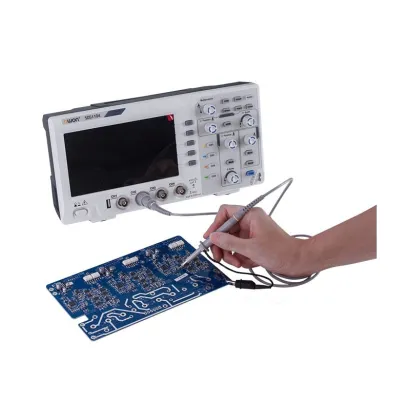

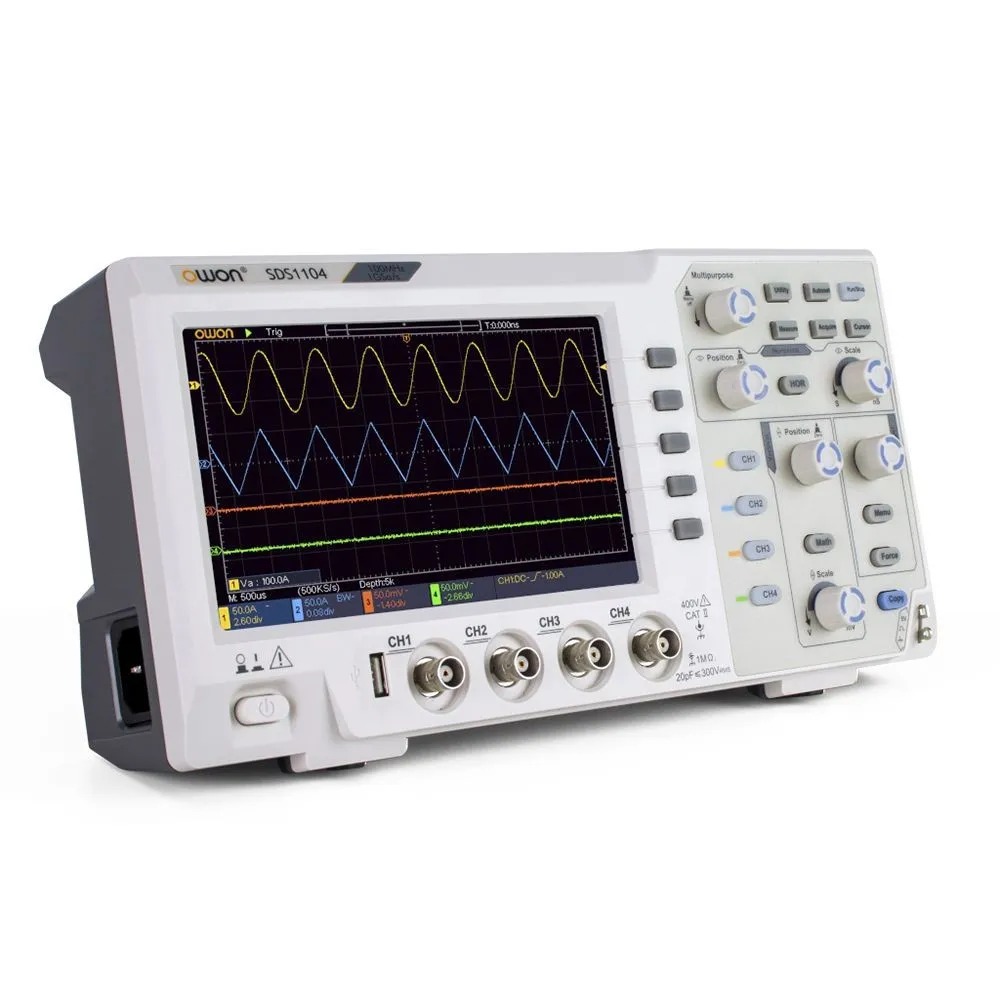

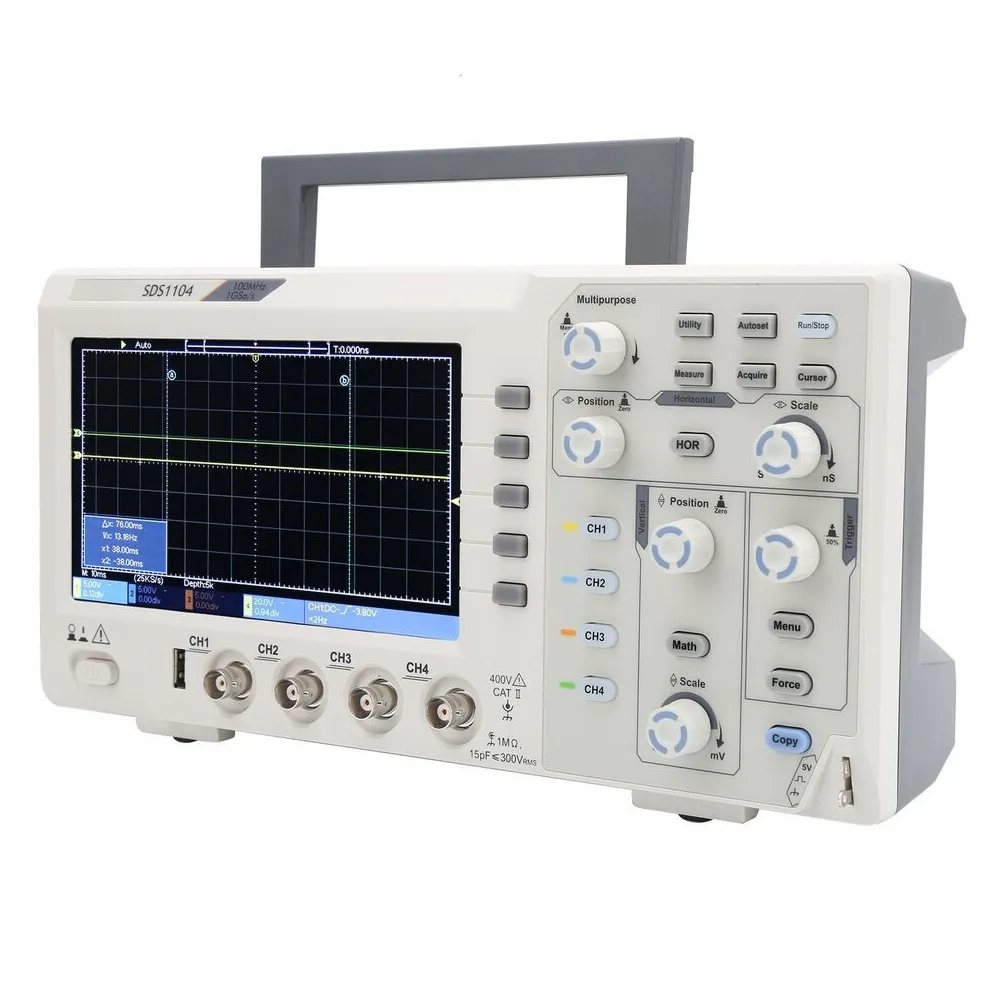

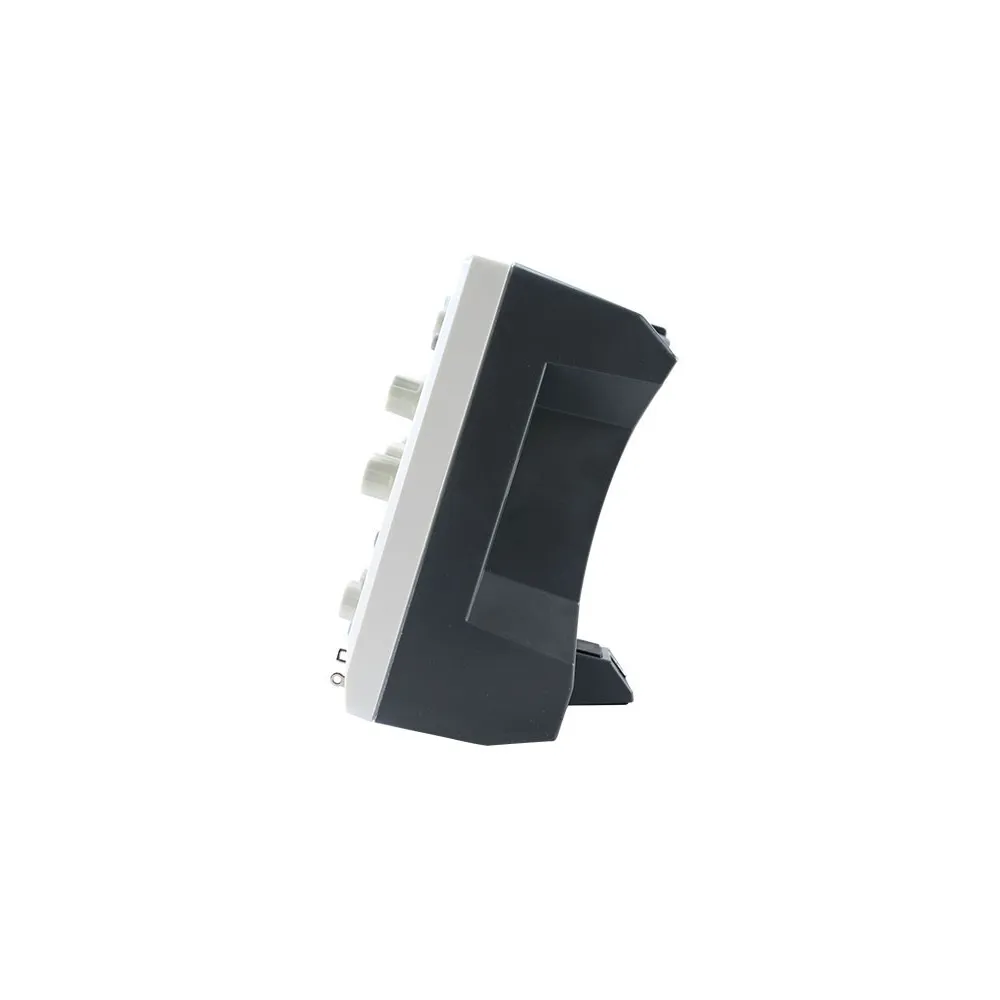

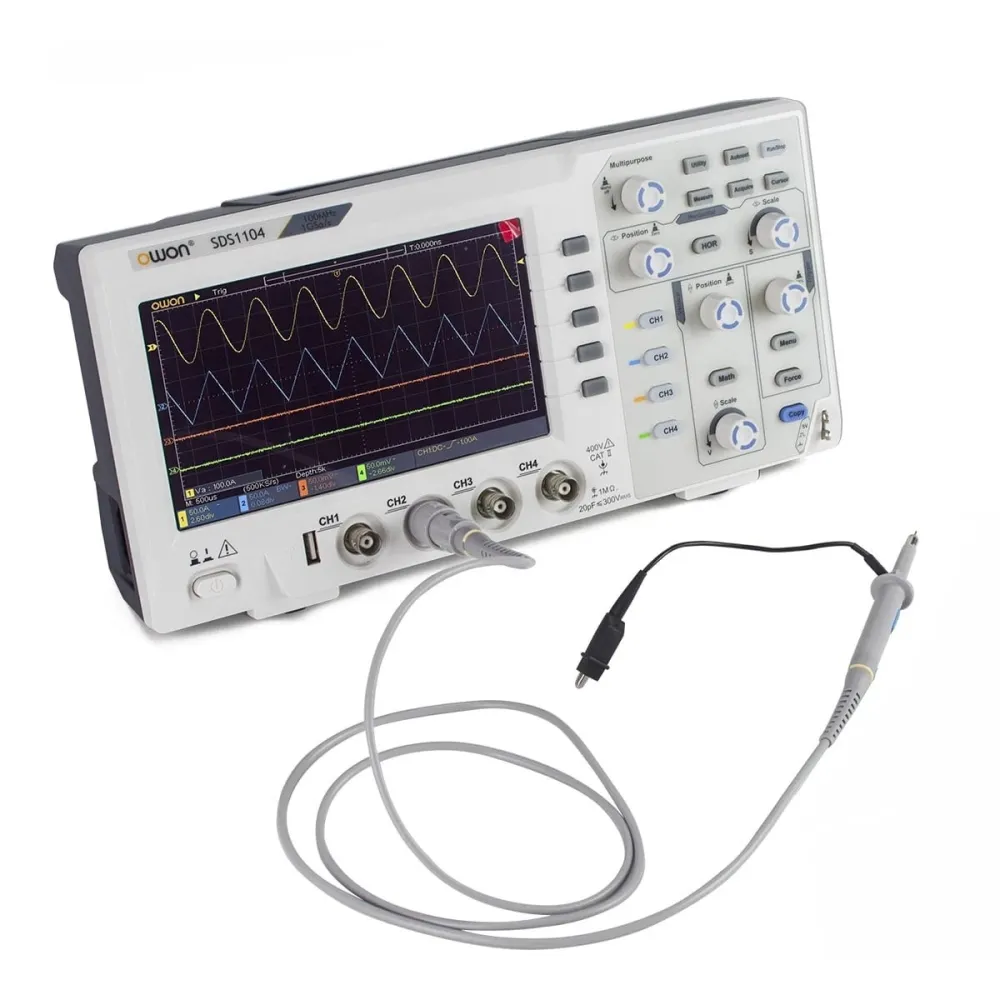

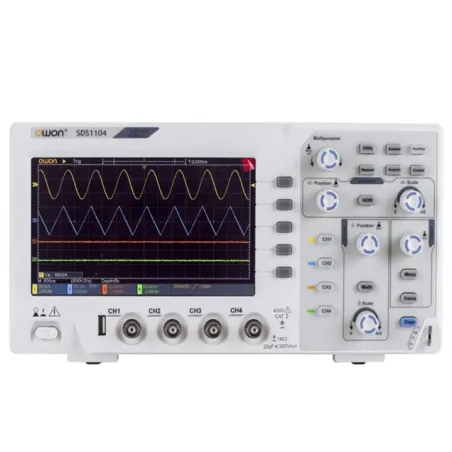

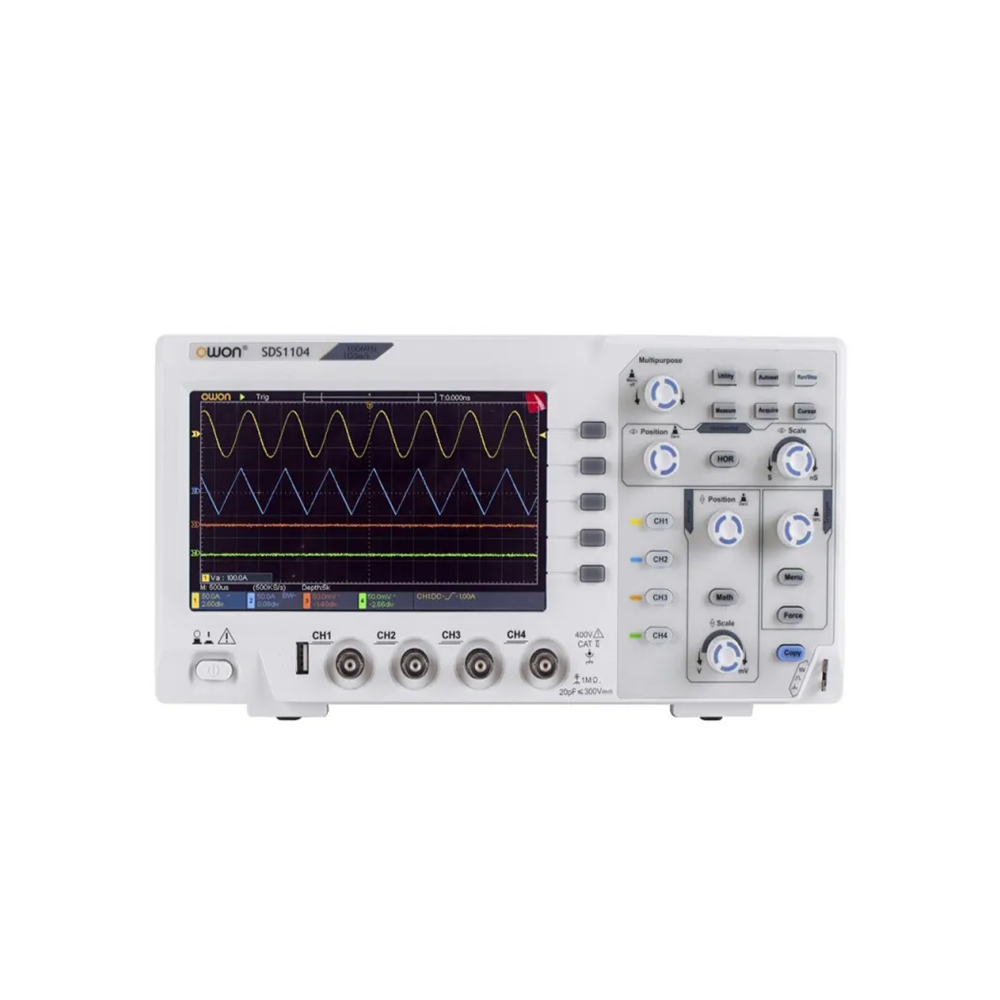

Owon SDS1104 oscilloscope

Short description

Delivery 5-15 working days

€309.00

Tax included

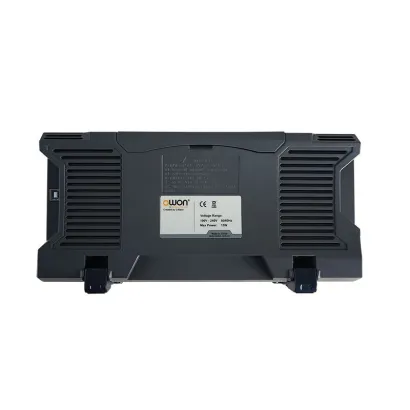

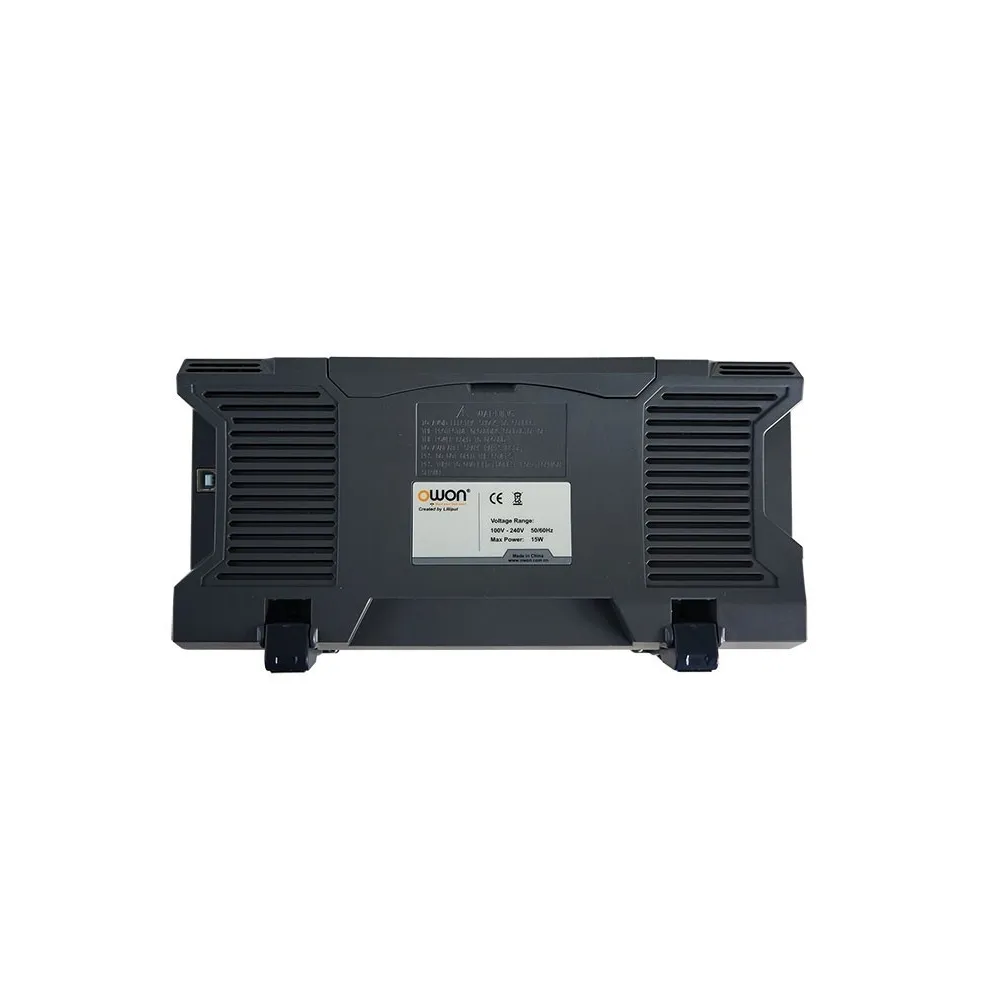

The Owon SDS1104 is a competitively priced oscilloscope with a sample rate of 1 GSa/s and a bandwidth of 100 MHz. With this oscilloscope, you have 4 channels at your disposal and it is possible to store 20 K points per measurement. There is a USB connection on the back for exporting measurement results to the PC, and a USB connection on the front for exporting to a USB memory stick.

Bandwidth	100 MHz	Channels	4
Memory depth	20 kpts	Sample rate	1 GSa/s
Rise time	≤3.5 ns	Trigger types	Edge, Video
Vertical resolution	8 bit	Vertical scale	2 mV/div - 10 V/div
Horizontal scale	2 ns/div - 1000 s/div	Measuring parameters (vertical)	Vmax, Vmin, Vpp, Vtop, Vbase, Mean, Vmean, Vrms
Measuring parameters (horizontal)	Period, Freq, +Wid, -Wid, Rise time, Fall time, +Dut, -Dut, Delay	Display	7" TFT LCD (800x480)
Connectivity	USB (Host/Device)
Dimensions	301 x 152 x 70 mm	Weight	1,1 kg
